Glossary

The following glossary describes key App Extensions features.

Context

An App Extension's context describes the control panel location where the Extension's UI loads. The context determines the window dimensions of the iFrame where the Extension's UI loads. There are currently two possible contexts:

EnumDescription
PANELThe iFrame target is a side panel overlay that opens on the right side of the current model view. Panels include expander arrows in the upper left corner that toggle the panel to full screen and then back to the narrower width, so panel markup should be responsive. The control panel URL does not change when the user clicks the App Extension's Action menu item.
LINKThe iFrame target is the app's usual location, in the store control panel's Apps sub-menu. When the user clicks the App Extension menu item, the control panel navigates them away from the model view they were interacting with when they clicked to open the App Extension. The iFrame size is the same as other pages of your app that load in the Apps sub-menu. The control panel URL changes when the user clicks the App Extension's Action menu item.

Model

An App Extension's model describes the control panel view it extends. Currently, App Extensions apply to the View All page of an API entity. There are currently three possible models:

EnumDescription
PRODUCTSApp Extension menu items render in the Action menu for each product on the View Products (opens in a new tab) page.
ORDERSApp Extension menu items render in the Action menu for each order on the View Orders (opens in a new tab) page.
CUSTOMERSApp Extension menu items render in the Action menu for each customer on the View Customers (opens in a new tab) page.

Label

An App Extension's label is the human-readable link text that describes it in the Action menu of each item listed on its model page.

For example, in the following App Extension, when a user is on the View Orders page and clicks Add personal thanks in the Action menu for any order, Add personal thanks is the label.

Partial App Extension query response, Add personal thanks
{
  "id": "bc/store/appExtension/2",
  "url": "/orders/${id}/personal-thanks",
  "model": "ORDERS",
  "label": {
    "defaultValue": "Add personal thanks"
  }
}

Label.defaultValue

Use English for an App Extension's default label. BigCommerce uses this link text when the control panel locale settings do not correspond with any of the locale codes defined in the App Extension at label.locales.localeCode. The technical string length limit is 255 characters, but for the most predictable user experience, we suggest a length of ≤25 characters.

Label.locales

In the AppExtension mutation, the label.locales array describes alternate label text for control panel users using languages other than English. The locale labels render based on the Preferred language configured in My Profile > Profile Information (opens in a new tab). For a list of locales the control panel currently supports, see User Profile: Edit Profile (Help Center) (opens in a new tab).

For example, in the following App Extension, when a user with their control panel language set to French is on the View Orders page and clicks Envoyez un merci personnel in the Action menu for any order, Envoyez un merci personnel is the label.

Partial App Extension query response, Add personal thanks
{
  "id": "bc/store/appExtension/2",
  "url": "/orders/${id}/personal-thanks",
  "model": "ORDERS",
  "label": {
    "defaultValue": "Add personal thanks",
    "locales": [
      {
        "value": "Envoyez un merci personnel",
        "localeCode": "fr-FR"
      }
    ]
  }
}

Label.locales.localeCode

For a list of locales the control panel currently supports, see User Profile: Edit Profile (Help Center) (opens in a new tab).

Label.locales.value

BigCommerce uses this link text when the control panel locale settings correspond with the text's accompanying locale code. The technical string length limit is 255 characters, but for the most predictable user experience, we suggest a length of ≤25 characters.

URL

The url is the App Extension's path, or deep link. In the AppExtension mutation, the url contains variable parameters templated as JavaScript ES6+ strings. The string length limit is 255 characters.

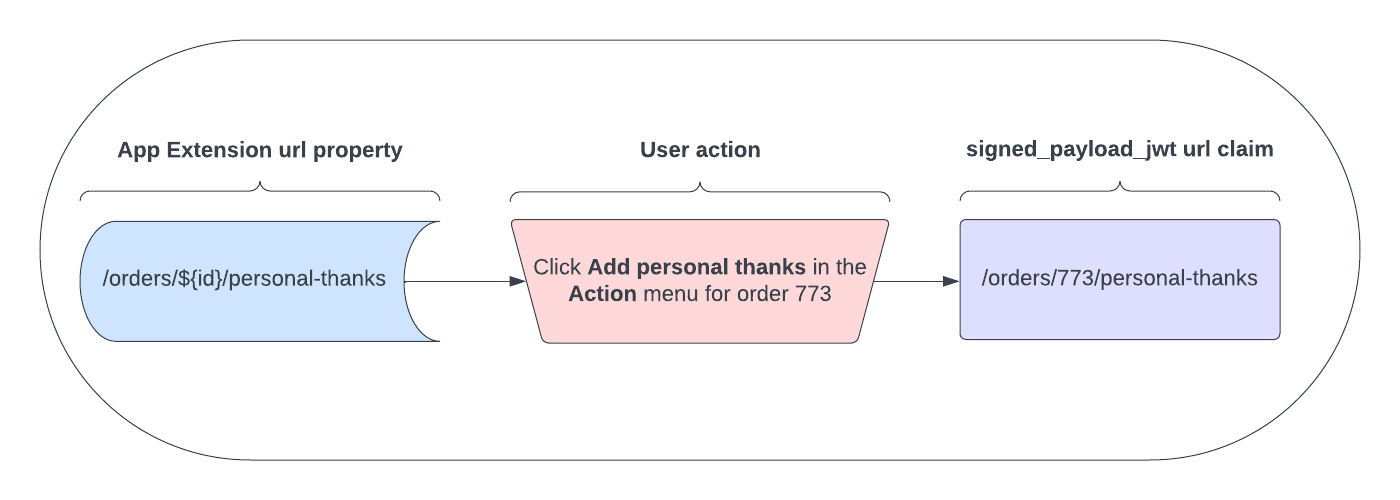

When the user clicks the App Extension's label, BigCommerce sends your app a load callback. The load callback's signed_payload_jwt contains a url property in which the variable parameters you defined are replaced with data points injected by the referring model. Consider the following App Extension and action diagram:

Partial App Extension query response, Add personal thanks
{
  "id": "bc/store/appExtension/2",
  "url": "/orders/${id}/personal-thanks",
  "model": "ORDERS",
  "label": {
    "defaultValue": "Add personal thanks"
  }
}

App Extension URL diagram

signed_payload_jwt

The contextual information your app needs to load an App Extension is delivered using properties of our load callback's signed_payload_jwt.

For more information, see Handling App Callbacks: Data Properties in the signed_payload_jwt.

Load callback

Clicking an App Extension menu item triggers the load callback. If you're using the Next.js starter app (opens in a new tab), a significant amount of app callback complexity is handled for you under the covers. If you're using a different stack or want to learn more, see Handling App Callbacks.
